PATCHBOX 365 Cat. 6a
- Description
- Additional information
- Product Features
- Items Included
- Technical Information
- Dimensions & Customs Information
- Downloads

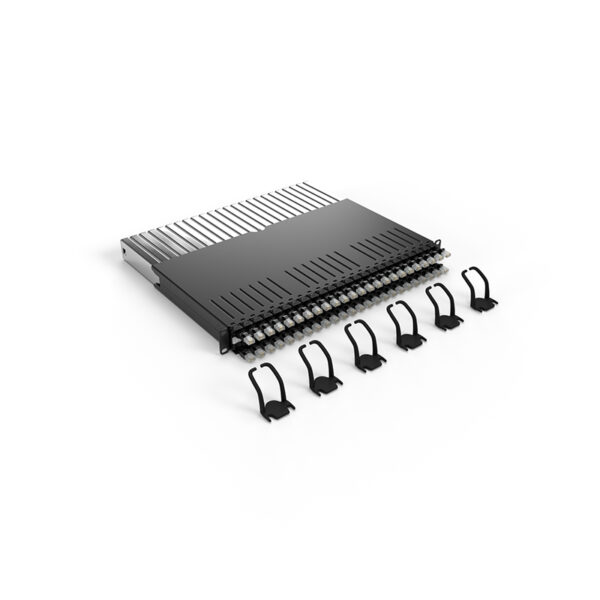

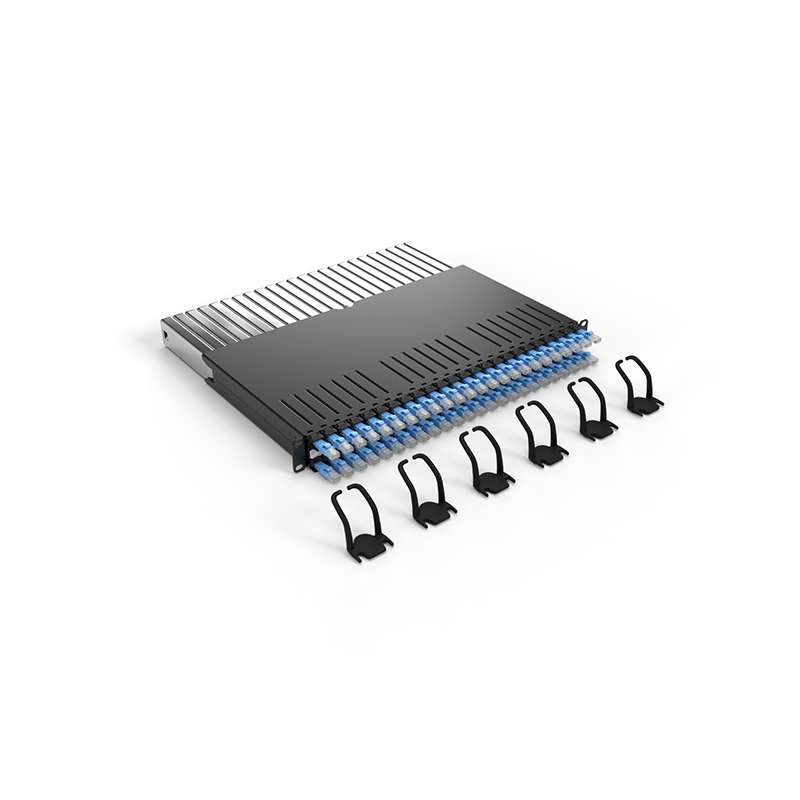

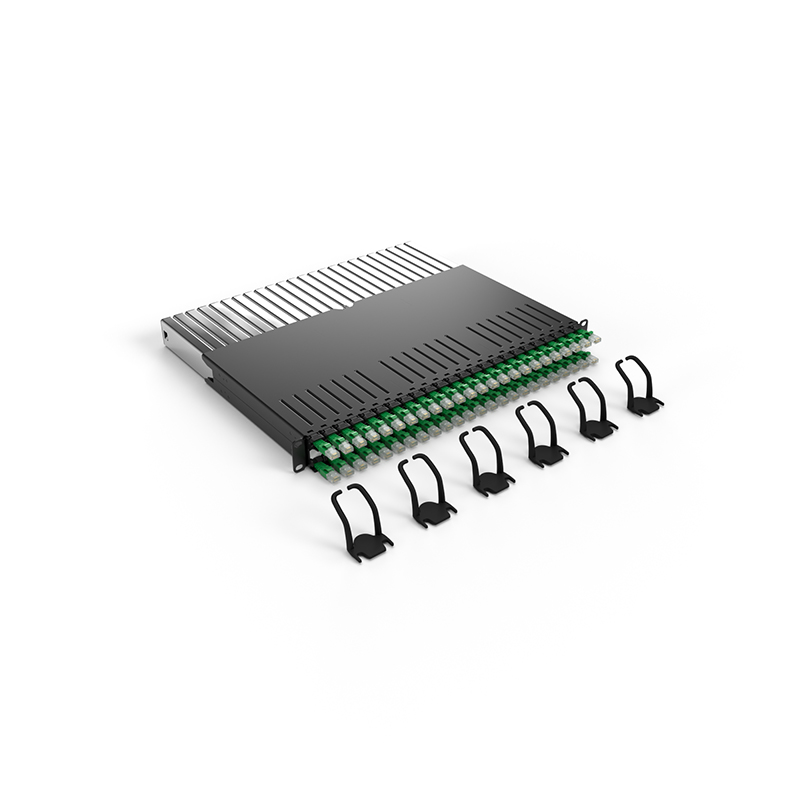

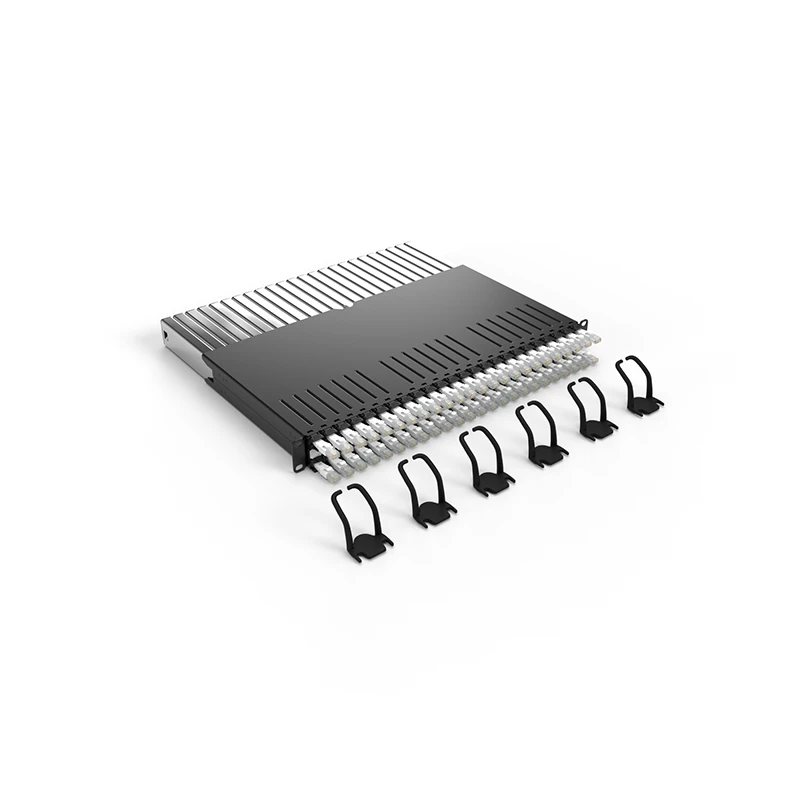

PATCHBOX® is the most innovative cabling system for network racks ever. The PATCHBOX® 365 with Cat.6a cables consists of a Frame, the Patchcatch – our 0RU cable manager – and 24 Cable Cassettes with retractable flat cables inside. The cables are 0.8m long and cover up to 8RU – ideal for small wall cabinets. You can decide between UTP and STP shielding and eight different cable colors for better overview.
Additional information
Weight | N/A |
---|---|
Dimensions | N/A |
Cable Type | UTP, STP |
Cable Color | Black, White, Red, Green, Blue, Yellow, Violet, Grey |
Product Features
- Retractable patch cords for perfect length patching
- Cable Stopper to adjust cable length precisely
- Each Cassette has own labelling option
- Steel frame that holds up to 24 Cassettes
- 0RU cable guides included
- Easy swapping of Cassettes
Items Included
- 24x PATCHBOX 365 Cassettes with Cat. 6a certified patch cords
- 1x PATCHBOX 365 Frame
- 6x PATCHBOX Patchcatch (0RU Cable Management)
- 2x DIN A5 tear off labels (96 Identification labels)
Technical Information
- UTP Cable: Flat Cat.6a U/UTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG30, 100% stranded copper, PVC jacket, PoE++ (802.3bt, Type 3 (60 W)), RoHS compliant
- STP Cable: Flat Cat.6a U/FTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG36, 100% stranded copper, PVC jacket, PoE (802.3af), RoHS compliant
- Connector: RJ45 shielded plug, pins gold plated, snagless booted
- Total Cable Length: 0.8m fully retractable (covers 8RU)
- Frame: RAL9005 Powder Coated Steel
- Cassette Profiles: Stainless steel, laser-welded
- All Plastic Parts: Polyoxymethylene (POM), black
- Operating Temperature Range: -20°C — 60°C
- Ambient Humidity (non-condensing): 10% to 90%
- Weight: 8.80kg
- PATCHBOX® 365 (W x D x H): 760mm x 590mm x 450mm
- Pulling Cycles: 300+
- 5 Years Warranty
Dimensions & Customs Information
- Packaging (W x D x H): 760mm x 590mm x 50mm
- Weight: 19.26 LBS
- HS-Code: 8544 4210
- Made in the EU
