PATCHBOX Plus+ Fiber Optic Cassette
- Description
- Additional information
- Product Features
- Items Included
- Technical Information
- Dimensions & Customs Information
- Downloads
Build your own PATCHBOX® with various cable types and colors of your choice! The PATCHBOX® Frame offers space for 24 Cable Cassettes. You can decide between OS2 and OM4 and LC-LC and LC-SC connectors.
Additional information
Weight | N/A |
---|---|
Dimensions | N/A |
Cable Type | OM4, OS2 |
Cable Length | Standard (1.8m / 5' 9"), Long Range (2.5m / 8' 2") |
Connector Type | LC-LC, LC-SC |
Product Features
- Retractable patch cords for perfect length patching
- Interchangeable modular cassette system
- Cable Stopper to adjust cable length precisely
- Integrated cassette labelling
Items Included
- 1x PATCHBOX Plus+ Fiber Optic Cassette
Technical Information

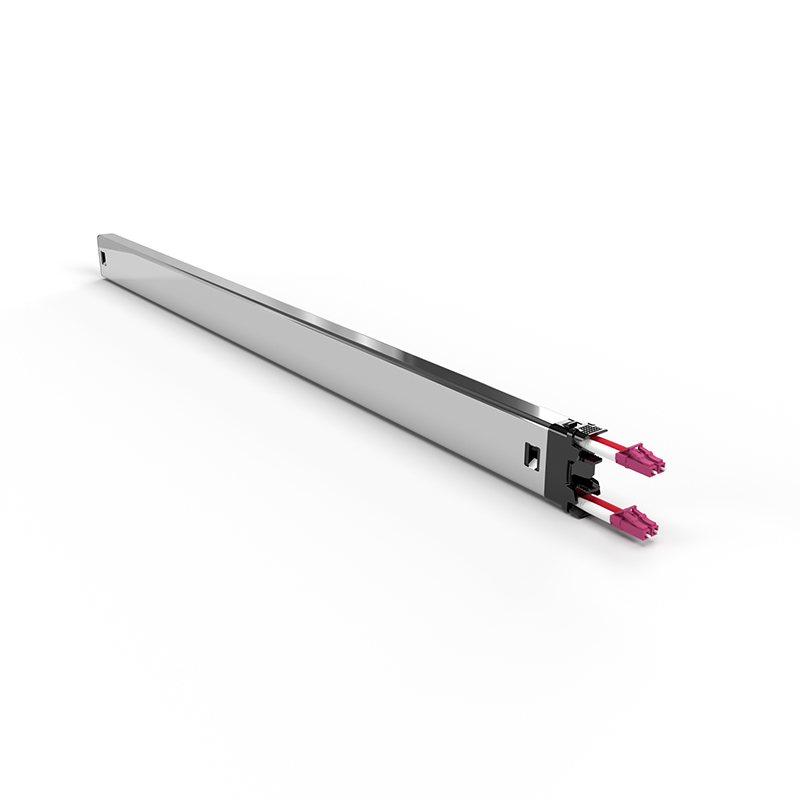

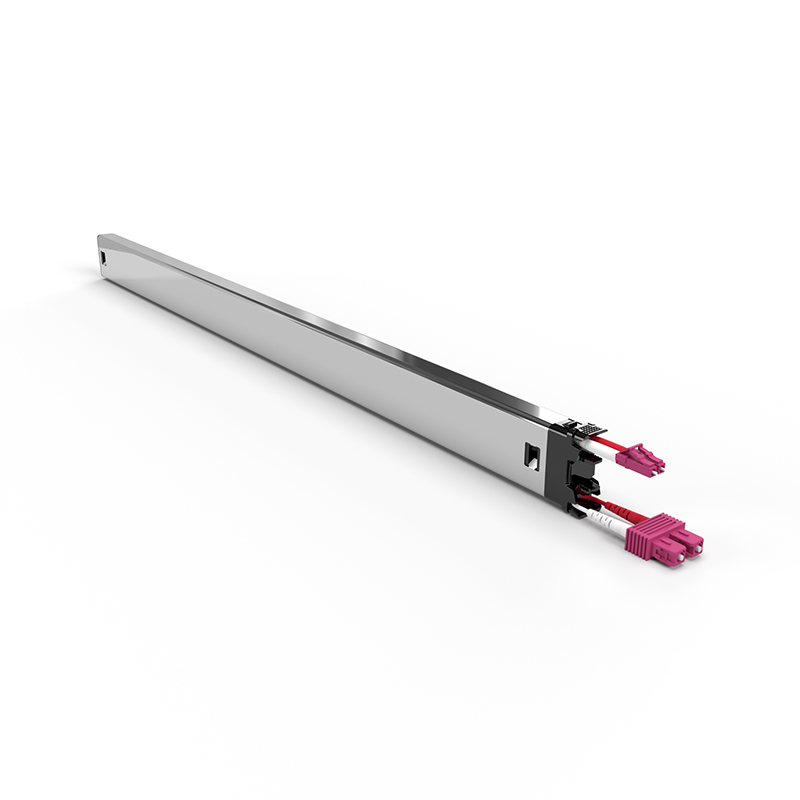

- OM4 Cable: OM4 RBS 50μ/125μ, LSZH, Erika Violet, Multi-Mode, RoHS compliant

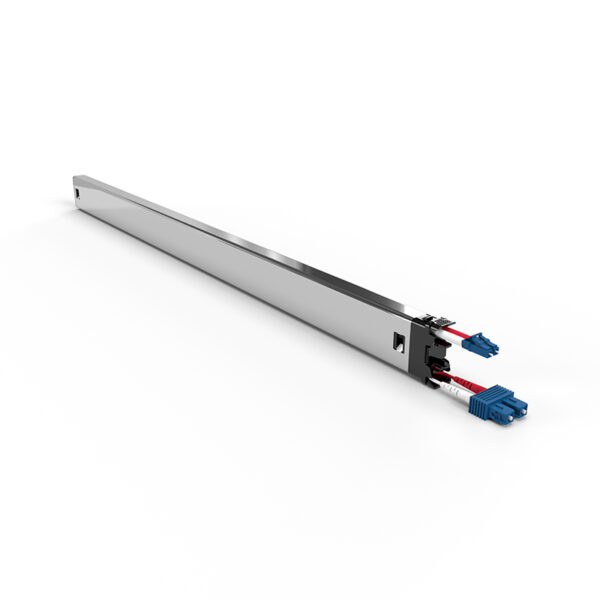

- OS2 Cable: OS2 RBS 9μ/125μ, G.657.B3, LSZH, Yellow, Single-Mode, RoHS compliant
- Connectors: LC Duplex – SC Duplex / LC Duplex – LC Duplex, others on request
- Cable length:
Standard Cassette: 1.8m covers 30RU

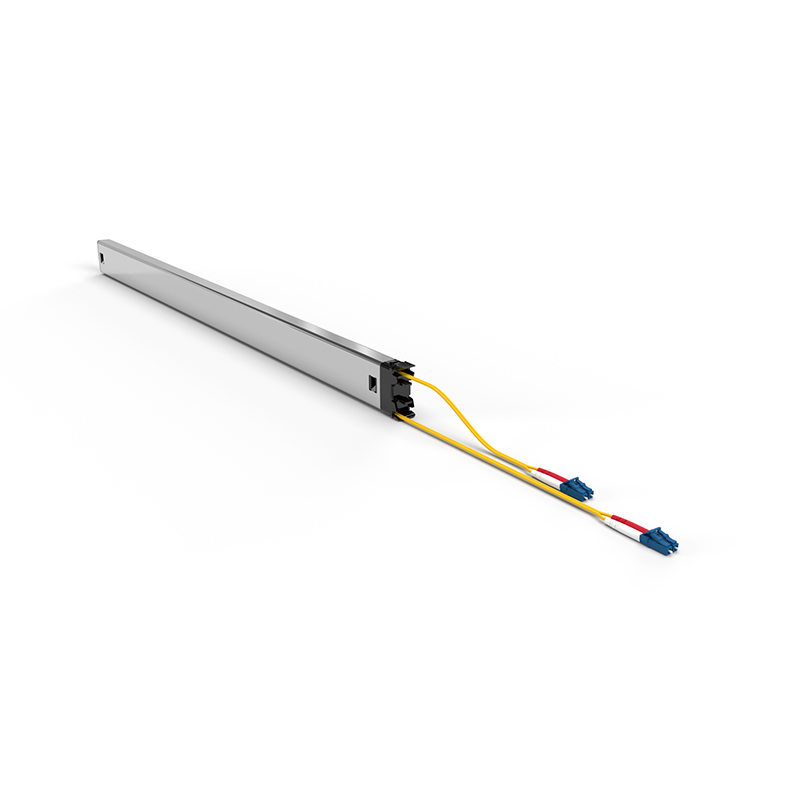

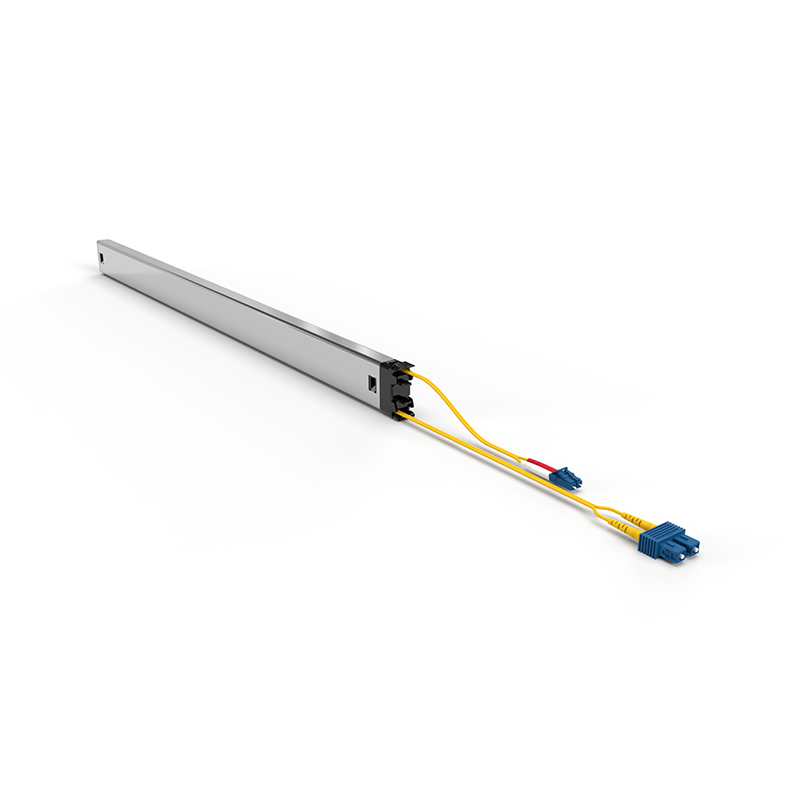

Long Range Cassette: 2.5m cover 46 RU (1.8m extractable + 0.7m overlength non-retractable) - Cassette Profiles: Stainless steel, laser-welded
- All Plastic Parts: Polyoxymethylene (POM), black
- Operating Temperature Range: -25°C — 70°C
- Ambient Humidity (non-condensing): 10% to 90%
- Pulling Cycles: 300+
- 5 Years Warranty
Dimensions & Customs Information
- Packaging (W x D x H): 690mm x 50mm x 50mm
- Weight: 0.88 LBS
- HS-Code: 8544 7000
- Made in the EU
