PATCHBOX Plus+ Fiber Optic
- Description
- Additional information
- Product Features
- Items Included
- Technical Information
- Dimensions & Customs Information
- Downloads

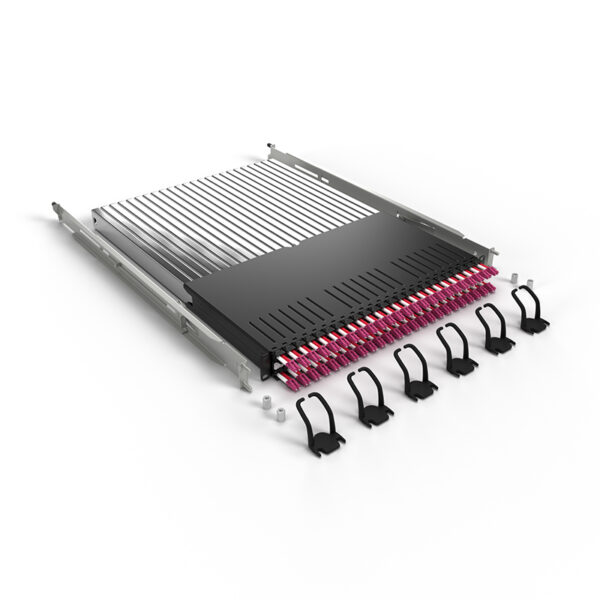

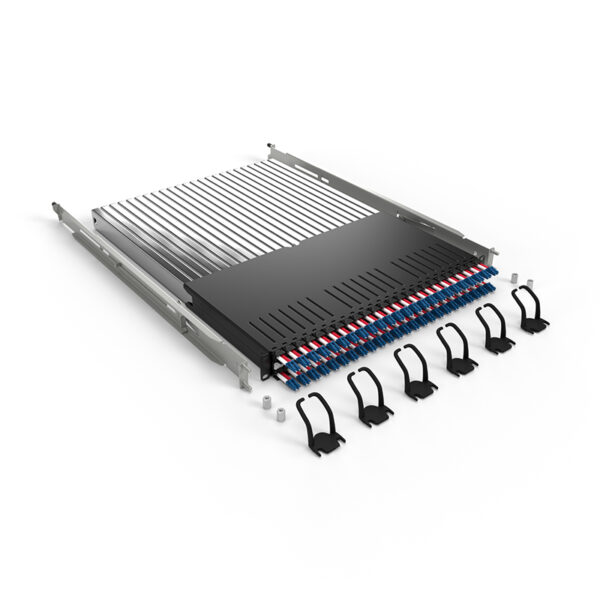

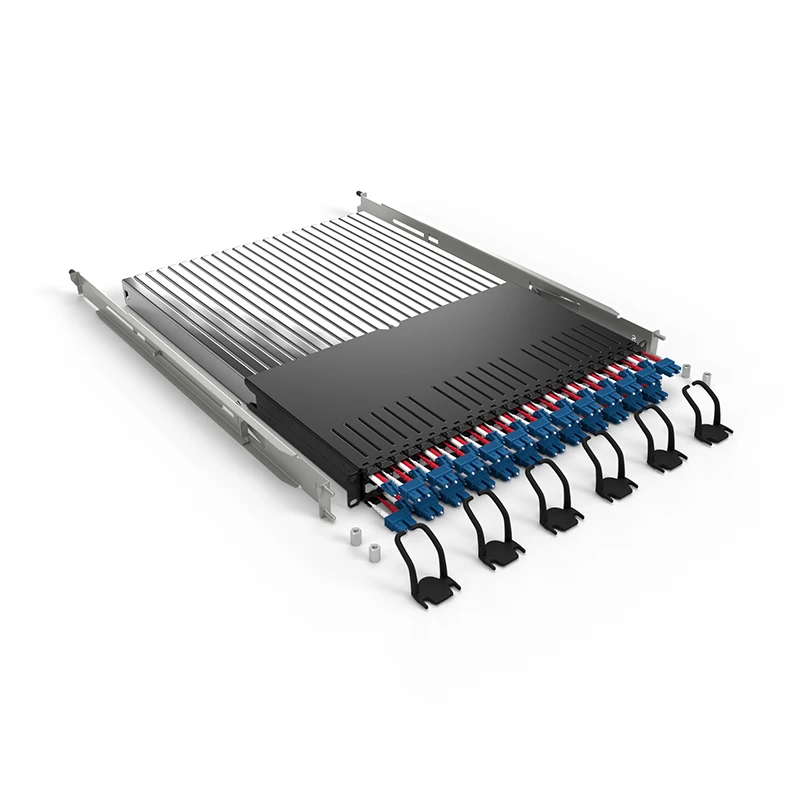

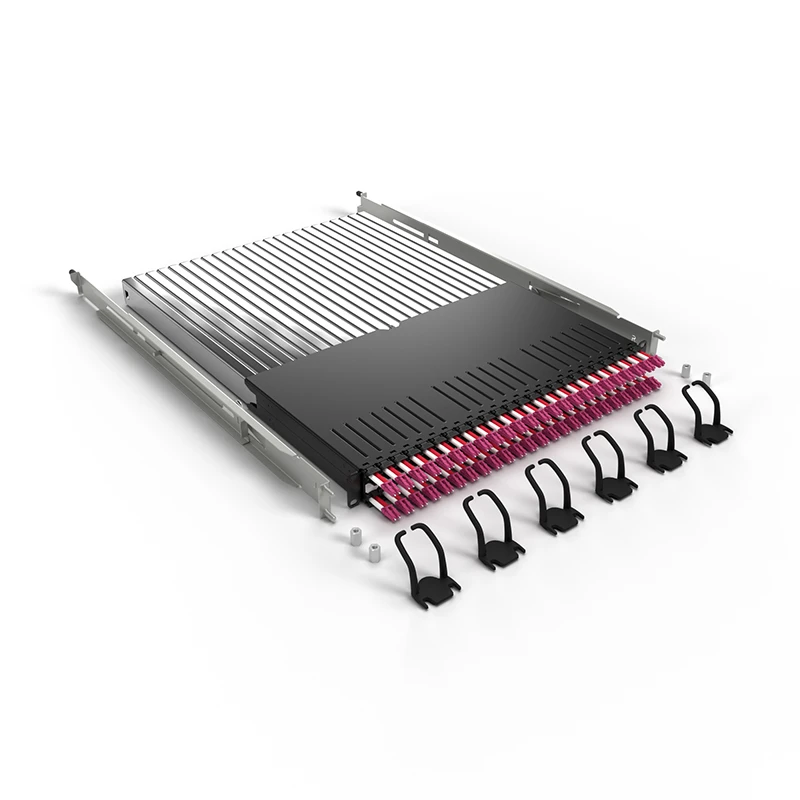

PATCHBOX® is the most innovative cabling system for network racks ever. The PATCHBOX® Plus+ with Fiber Optic cables consists of a Frame, Mounting Rails, the Patchcatch – our 0RU cable manager – and 24 Cable Cassettes with retractable flat cables inside. The cables are 1.8m long and cover up to 30RU. You can decide between OS2 and OM4 and LC-LC and LC-SC connectors.
Additional information
Dimensions | N/A |
---|---|
Cable Type | OM4, OS2 |
Connector Type | LC-LC, LC-SC |
Product Features
- Retractable patch cords for perfect length patching
- Cable Stopper to adjust cable length precisely
- Each Cassette has own labelling option
- Adjustable Mounting Rails
- Steel frame that holds up to 24 Cassettes
- 0RU cable guides included
- Easy swapping of Cassettes
Items Included
- 24x PATCHBOX Plus+ Fiber Optic Cassettes
- 1x PATCHBOX Plus+ Frame
- 2x adjustable Mounting Rails incl. HEX-Nuts
- 6x PATCHBOX Patchcatch (0RU Cable Management)
- 2x DIN A5 tear off labels (96 Identification labels)
Technical Information
- OM4 Cable: OM4 RBS 50μ/125μ, LSZH, Erika Violet, Multi-Mode, RoHS compliant
- OS2 Cable: OS2 RBS 9μ/125μ, G.657.B3, LSZH, Yellow, Single-Mode, RoHS compliant
- Connectors: LC Duplex – SC Duplex / LC Duplex – LC Duplex, others on request
- Total Cable Length: 1.8m fully retractable (covers 30RU)
- Frame: RAL9005 Powder Coated Steel
- Cassette Profiles: Stainless steel, laser-welded
- All Plastic Parts: Polyoxymethylene (POM), black
- Mounting Rails: Stainless Steel, 500mm to 850mm from 19″ rail to 19″ rail
- Operating Temperature Range: -25°C — 70°C
- Ambient Humidity (non-condensing): 10% to 90%
- Weight: 11.86kg
- PATCHBOX® Plus+ (W x D x H): 760mm x 590mm x 50mm
- Pulling Cycles: 300+
- 5 Years Warranty
Dimensions & Customs Information
- Packaging (W x D x H): 760mm x 590mm x 50mm
- Weight: 26.14 LBS
- HS-Code: 8544 7000
- Made in the EU
